Alloy steel butt-weld fittings are designed for industrial piping systems operating under elevated temperatures, high pressures, and demanding mechanical conditions. As a reliable Alloy Steel Buttweld Fitting Stockist in India and Alloy Steel Buttweld Fitting Supplier in India, Metal-Link Steel & Alloys supplies a comprehensive range of elbows, tees, reducers, caps, and other butt-weld fittings in chromium-molybdenum and other alloy steel grades.
An Alloy Steel Buttweld Fitting is welded directly to the pipe, creating a permanent and continuous piping connection. This design provides good structural integrity and makes butt-weld fittings suitable for large-diameter pipelines, high-temperature process lines, steam systems, refineries, power plants, and petrochemical facilities.
With an established presence since 1985 and ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018 certifications, Metal-Link supports alloy steel buttweld fitting requirements with material traceability, inspection documentation and project-based supply.
Get Factory Rates →| Specification | Details |
|---|---|
| Product | Alloy Steel Buttweld Fittings |
| Material Grades | ASTM A234 WP5, WP9, WP11, WP22, WP91 |
| Material Specification | ASTM A234 / ASME SA234 |
| Standards | ASME B16.9, ASME B16.28, MSS SP-75 |
| Types Available | Elbows (45° & 90°, LR & SR), Tees, Reducing Tees, Crosses, Concentric Reducers, Eccentric Reducers, Caps, Stub Ends |
| End Connection | Butt Weld (Beveled Ends) |
| Product Form | Wrought / Formed & Heat Treated |
| Application | High-Temperature, High-Pressure Industrial & Process Piping Systems |
As an experienced Alloy Steel Buttweld Fitting Supplier in India, Metal-Link supplies fittings for directional changes, branch connections, diameter transitions, and pipeline termination. Our product range includes:
Alloy steel tees are used to create branch connections from a main pipeline. Equal tees connect pipes of the same nominal size, while reducing tees connect a branch of a smaller size.
Cross fittings provide four connection points and are used in piping layouts requiring multiple branch directions. Their use should be evaluated according to the applicable piping code, stress analysis, and service conditions.
| Grade | Standard Reference | Common Application Characteristic |
|---|---|---|
| WP5 | ASTM A234 | Elevated-temperature process piping |
| WP9 | ASTM A234 | High-temperature pressure applications |
| WP11 | ASTM A234 | Steam, boiler, and refinery piping |
| WP22 | ASTM A234 | High-pressure and elevated-temperature systems |
| WP91 | ASTM A234 | Advanced high-temperature power generation |
ASTM A234 WP5 is a chromium-molybdenum alloy steel grade used for elevated-temperature piping applications. Chromium contributes to oxidation resistance, while molybdenum improves strength and performance at higher operating temperatures.
WP5 alloy steel butt-weld fittings are commonly used in refinery units, petrochemical processing, and high-temperature industrial piping.
ASTM A234 WP9 is a chromium-molybdenum alloy steel grade designed for pressure piping components used at elevated temperatures.
WP9 fittings are commonly selected for refinery piping, power generation systems, and specialized high-temperature process applications.

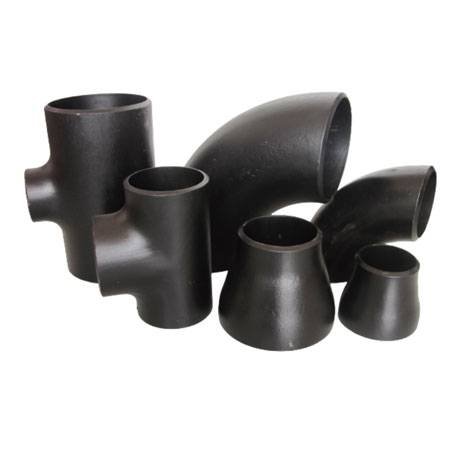

ASTM A234 WP11 is a chromium-molybdenum alloy steel grade widely used in high-temperature and high-pressure piping systems. It offers a balance of mechanical strength, toughness, and creep resistance.
WP11 Alloy Steel Buttweld Fittings are commonly used in boilers, power plants, steam lines, refineries, and petrochemical facilities.

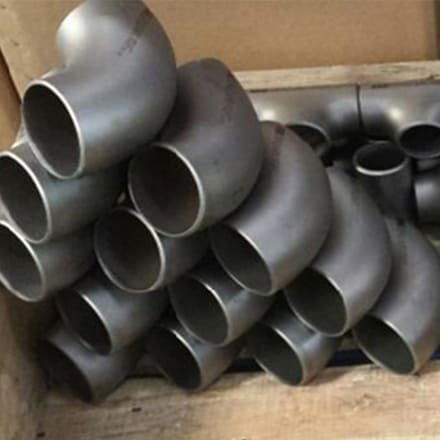

ASTM A234 WP22 is a chromium-molybdenum alloy steel used for more demanding elevated-temperature service. It is selected where creep strength and resistance to prolonged high-temperature exposure are important.
WP22 fittings are widely used in thermal power plants, high-pressure steam pipelines, refineries, and petrochemical installations.
ASTM A234 WP91 is a modified 9Cr-1Mo alloy steel developed for advanced high-temperature and high-pressure applications. Its controlled composition includes strengthening elements that provide significantly improved creep resistance compared with conventional chromium-molybdenum steels.
WP91 Alloy Steel Buttweld Fittings are commonly used in supercritical and advanced thermal power systems, high-temperature steam pipelines, superheater systems, and reheater lines. Fabrication and heat treatment require strict control to maintain the required material properties.
As a professional Alloy Steel Buttweld Fitting Stockist in India, Metal-Link supplies fittings according to applicable international dimensional and material specifications.
| Standard | Scope |
|---|---|
| ASME B16.9 | Factory-made wrought steel butt-welding fittings |
| ASME B16.28 | Wrought steel butt-welding short radius elbows and returns |
| ASTM A234 / ASME SA234 | Wrought carbon steel and alloy steel fittings for moderate and elevated-temperature service |
| MSS SP-75 | High-strength butt-welding fittings where applicable |
| ASTM A335 / ASME SA335 | Related alloy steel seamless pipe specification |
| EN / DIN / BS | Alternative dimensional and material standards as required |
The performance of an Alloy Steel Buttweld Fitting is determined by its alloy composition and heat treatment condition.
| Alloying Element | Primary Contribution |
|---|---|
| Chromium | Improves oxidation resistance and high-temperature performance |
| Molybdenum | Improves creep strength and elevated-temperature mechanical properties |
| Carbon | Contributes to strength and hardenability |
| Manganese | Supports strength and hardenability |
| Silicon | Acts as a deoxidizer and supports high-temperature performance |
| Vanadium | Improves high-temperature strength in advanced grades |
| Niobium | Supports microstructural stability and creep resistance in selected grades |
The exact chemical composition varies by material grade and should be verified against the applicable ASTM specification and Material Test Certificate.
Alloy steel butt-weld fittings are produced through controlled forming processes to achieve the required shape, wall thickness, and mechanical properties. The manufacturing process may include:
Heat treatment is particularly important for chromium-molybdenum grades because it influences hardness, toughness, strength, and elevated-temperature performance.
Alloy steel butt-weld fittings are selected when conventional carbon steel does not provide sufficient mechanical stability at elevated temperatures. Important performance characteristics include:
WP11 and WP22 are widely used for conventional high-temperature pressure systems, while WP91 is intended for more demanding applications requiring advanced creep resistance.
An Alloy Steel Buttweld Fitting is installed through welding, making proper fabrication procedures essential to the long-term reliability of the piping system. Important considerations include:
Higher-alloy grades such as WP22 and WP91 require particularly careful control of welding and heat treatment parameters.
Alloy steel butt-weld fittings are widely used in industries involving elevated temperatures, high pressures, and demanding mechanical conditions.
As a dependable Alloy Steel Buttweld Fitting Supplier in India, Metal-Link Steel & Alloys can supply fittings with inspection and testing according to project specifications and applicable standards. Available testing may include:
With an established presence since 1985 and ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018 certifications, Metal-Link supports consistent product quality. Documentation can include Material Test Certificates, heat-treatment records, PMI reports, NDT reports, and third-party inspection certificates.
View Certificate →Metal-Link Steel & Alloys supplies Alloy Steel Buttweld Fittings to EPC contractors, engineering companies, power plants, refineries, fabricators, distributors and industrial buyers across major Indian markets. As an Alloy Steel Buttweld Fitting Supplier in India, Metal-Link supports standard and project-specific requirements based on grade, size, schedule, and quantity.
Looking for an Alloy Steel Buttweld Fitting Stockist in India for your power generation, refinery, petrochemical, boiler, steam, or high-temperature process piping requirements? Contact Metal-Link Steel & Alloys with your required fitting type, material grade, nominal pipe size, schedule or wall thickness, dimensional standard, quantity, heat-treatment requirements, testing requirements, inspection requirements and documentation requirements for availability and project-specific pricing.
