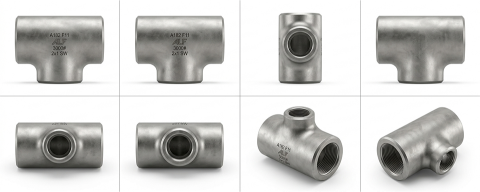

Alloy steel forged fittings are designed for high-pressure, elevated-temperature, and demanding industrial piping systems where standard carbon steel fittings may not provide the required mechanical or thermal performance. As a reliable Alloy Steel Forged Fitting Stockist in India and Alloy Steel Forged Fitting Supplier in India, Metal-Link Steel & Alloys supplies forged fittings in different chromium-molybdenum alloy grades, sizes, pressure classes, and end connections.
An Alloy Steel Forged Fitting is manufactured from alloy steel that is mechanically worked through forging to produce a dense and refined grain structure. Chromium and molybdenum are commonly used alloying elements to improve high-temperature strength, creep resistance, hardenability, and oxidation resistance. These fittings are widely used in power plants, refineries, petrochemical facilities, boilers, and high-temperature process piping.
With an established presence since 1985 and ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018 certifications, Metal-Link supports alloy steel forged fitting requirements with material traceability, inspection documentation and project-based supply.
Get Factory Rates →| Specification | Details |
|---|---|
| Product | Alloy Steel Forged Fittings |
| Material Grades | ASTM A182 F5, F9, F11, F22, F91 |
| Pressure Classes | Class 3000, 6000, 9000 |
| End Connections | Socket Weld, Threaded |
| Standards | ASME B16.11, MSS SP-79, MSS SP-83, MSS SP-95, MSS SP-97 |
| Material Specification | ASTM A182 / ASME SA182 |
| Product Form | Forged & Machined |
| Types Available | Elbows, Tees, Crosses, Couplings, Unions, Caps, Plugs, Bushings, Reducers, Swage Nipples |
| Application | High-Pressure, Elevated-Temperature Industrial & Process Piping Systems |
As an experienced Alloy Steel Forged Fitting Supplier in India, Metal-Link supplies a range of fittings for branch connections, directional changes, pipe extensions, and system closures. Our product range includes:
Socket weld fittings are commonly used in small-bore piping systems where high joint strength and pressure integrity are required. The pipe is inserted into the fitting socket and welded around the outside of the connection.
Socket weld Alloy Steel Forged Fittings are frequently used in steam systems, power-generation piping, refinery units, and high-pressure process installations.
Threaded forged fittings connect to pipes through machined internal threads. They are useful in applications where welding is not preferred or where components may need to be dismantled for inspection or maintenance.
Threaded connections should be selected carefully for applications involving cyclic loading, vibration, leakage-sensitive fluids, or severe pressure-temperature conditions.
| Grade | Standard Reference | Typical Application |
|---|---|---|
| F5 | ASTM A182 | Refinery piping & high-temperature industrial systems |
| F9 | ASTM A182 | High-temperature pressure piping & thermal applications |
| F11 | ASTM A182 | Boilers, steam lines, power plants & refineries |
| F22 | ASTM A182 | High-pressure steam systems & petrochemical installations |
| F91 | ASTM A182 | Advanced power generation & critical high-temperature piping |
ASTM A182 F5 is a chromium-molybdenum alloy steel commonly used for elevated-temperature service. Chromium improves oxidation resistance, while molybdenum contributes to high-temperature strength.
F5 alloy steel forged fittings are used in refinery piping, petrochemical processing, and high-temperature industrial systems.
ASTM A182 F9 is a chromium-molybdenum alloy steel grade developed for high-temperature and pressure-containing applications. Its alloy composition supports improved thermal stability compared with conventional carbon steel.
F9 fittings are commonly selected for specialized process piping and equipment operating under elevated-temperature conditions.

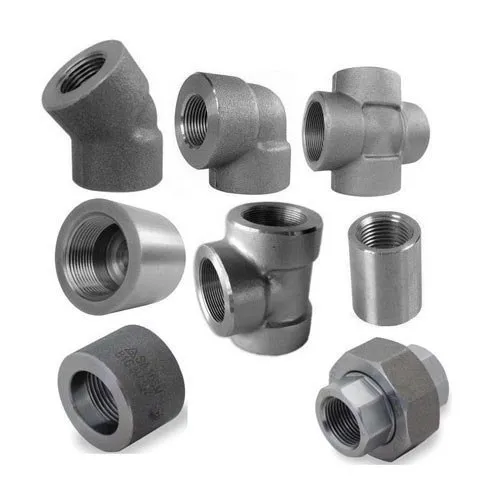

ASTM A182 F11 is a widely used chromium-molybdenum alloy steel grade for pressure systems operating at elevated temperatures. It provides a useful balance of strength, toughness, and high-temperature performance.
F11 alloy steel forged fittings are frequently used in boilers, steam lines, power plants, refineries, and petrochemical facilities.

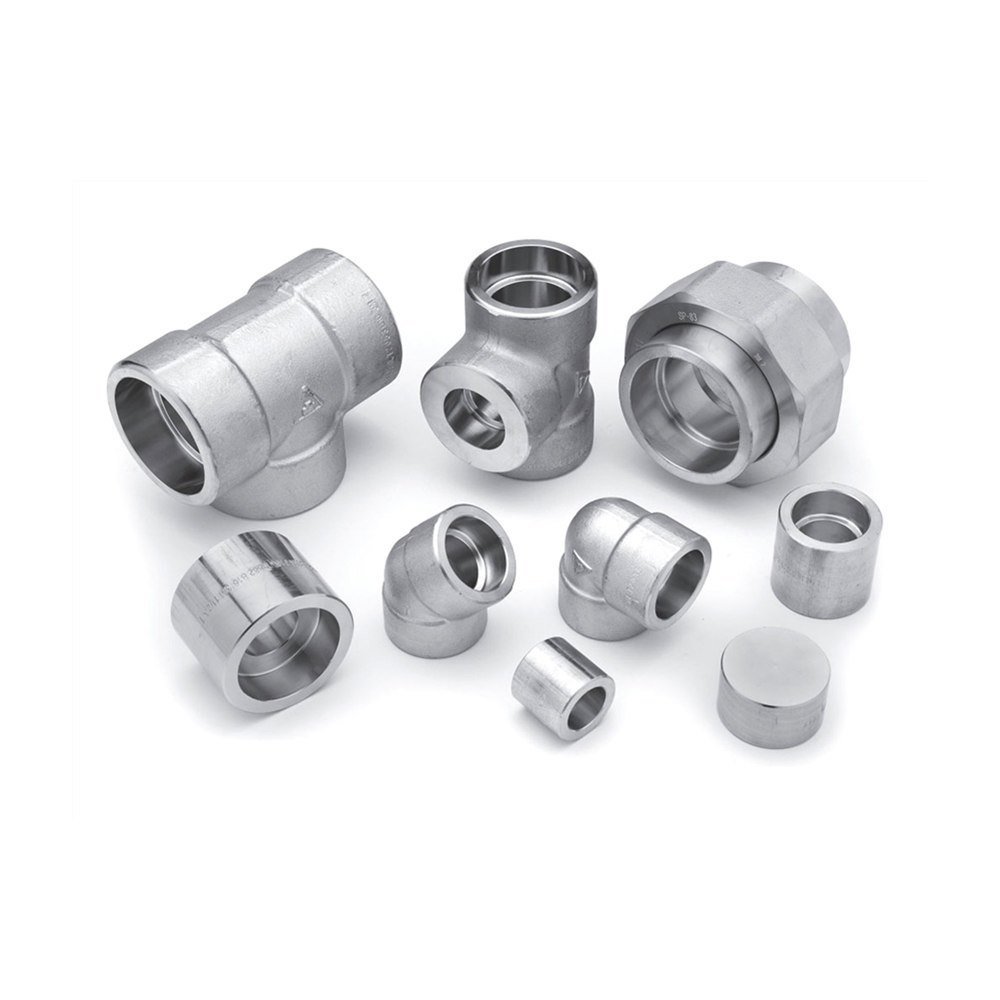

ASTM A182 F22 is a chromium-molybdenum alloy steel designed for more demanding elevated-temperature pressure applications. It is widely associated with piping systems where creep and stress-rupture performance are important.
F22 forged fittings are commonly used in power-generation plants, high-pressure steam systems, refineries, and petrochemical installations.
ASTM A182 F91 is a modified 9Cr-1Mo alloy steel with controlled additions of elements such as vanadium and niobium. It is designed for advanced high-temperature applications requiring superior creep strength.
F91 Alloy Steel Forged Fittings are used in superheater and reheater systems, high-temperature steam pipelines, and critical power plant applications. Welding and heat-treatment procedures for F91 require careful control to preserve the required microstructure and mechanical properties.
Alloy steel forged fittings are commonly manufactured in the following pressure classes. The appropriate class depends on factors such as pipe schedule, material grade, design pressure, design temperature, and the applicable piping code.
Pressure capability must be evaluated using the relevant standard and material temperature-pressure rating rather than selecting a fitting based only on its pressure class designation.
As a professional Alloy Steel Forged Fitting Stockist in India, Metal-Link supplies products according to applicable international standards and project specifications.
| Standard | Scope |
|---|---|
| ASME B16.11 | Forged fittings – socket-weld and threaded end connections |
| ASTM A182 / ASME SA182 | Forged alloy steel material specification |
| MSS SP-79 | Socket-welding reducer inserts |
| MSS SP-83 | Class 3000 and 6000 pipe unions |
| MSS SP-95 | Swaged nipples and bull plugs |
| MSS SP-97 | Integrally reinforced branch outlet fittings |
| ASTM A234 | Related butt-weld alloy steel fittings |
| EN / DIN / BS | Alternative dimensional and material standards as required |
The performance of an Alloy Steel Forged Fitting depends on its controlled chemical composition and heat treatment.
| Alloying Element | Primary Contribution |
|---|---|
| Chromium | Improves oxidation resistance and high-temperature performance |
| Molybdenum | Improves creep strength and elevated-temperature mechanical properties |
| Carbon | Contributes to strength and hardenability |
| Manganese | Supports strength and hardenability |
| Silicon | Acts as a deoxidizer and supports oxidation resistance |
| Vanadium | Improves high-temperature strength in advanced grades |
| Niobium | Supports creep resistance and microstructural stability in selected grades |
The exact chemical composition varies according to the ASTM material grade and should be verified through the applicable Material Test Certificate.
Forging improves the mechanical integrity of alloy steel fittings by plastically deforming the material into the required shape under controlled conditions. A typical manufacturing process includes:
Heat treatment is particularly important for chromium-molybdenum alloy steel grades because it directly influences hardness, toughness, strength, and creep performance.
Alloy steel forged fittings are primarily selected for their ability to maintain mechanical integrity under demanding pressure and temperature conditions. Important performance properties include:
F11 and F22 are commonly used for conventional high-temperature pressure systems, while F91 is selected for more severe applications where improved creep strength can support advanced high-temperature operation.
Alloy steel fittings require controlled fabrication procedures because chromium-molybdenum steels can be sensitive to cooling rates, hydrogen cracking, and heat-treatment requirements. Important considerations include:
For critical grades such as F22 and F91, welding procedures should be established according to the applicable material specification, design code, and approved project requirements.
Alloy steel forged fittings are used in piping systems where high temperature, pressure, and mechanical loading require more than standard carbon steel performance.
As a dependable Alloy Steel Forged Fitting Supplier in India, Metal-Link Steel & Alloys can supply fittings with testing and inspection according to customer specifications and applicable standards. Available testing may include:
With an established presence since 1985 and ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018 certifications, Metal-Link supports consistent product quality. Material Test Certificates and third-party inspection documentation can be provided according to project requirements.
View Certificate →Metal-Link Steel & Alloys supplies Alloy Steel Forged Fittings to EPC contractors, engineering companies, power plants, refineries, fabricators, distributors and industrial buyers across major Indian markets. As an Alloy Steel Forged Fitting Supplier in India, Metal-Link supports standard and project-specific requirements based on grade, size, pressure class and quantity.
Looking for an Alloy Steel Forged Fitting Stockist in India for your power generation, refinery, or process piping requirements? Contact Metal-Link Steel & Alloys with your required fitting type, material grade, size, pressure class, end connection, thread standard where applicable, quantity, heat-treatment requirements, testing requirements and documentation requirements for availability and project-specific pricing.
