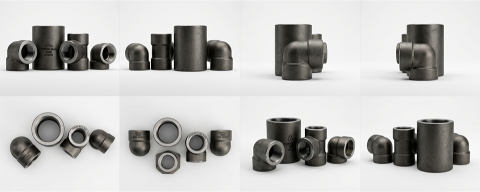

Carbon steel forged fittings are widely used in industrial piping systems that require dependable mechanical strength, pressure integrity, and cost-effective performance. As a trusted Carbon Steel Forged Fitting Stockist in India and Carbon Steel Forged Fitting Supplier in India, Metal-Link Steel & Alloys supplies a complete range of socket weld and threaded fittings in different sizes, pressure classes, material grades, and configurations.
A Carbon Steel Forged Fitting is manufactured by forging carbon steel under controlled conditions and machining it to the required dimensions. The forging process produces a dense material structure and makes these fittings suitable for small-bore piping systems operating under pressure. Carbon steel forged fittings are commonly used in oil and gas, petrochemical, power generation, water treatment, and general industrial applications.
With an established presence since 1985 and ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018 certifications, Metal-Link supports carbon steel forged fitting requirements with material traceability, inspection documentation and project-based supply.
Get Factory Rates →| Specification | Details |
|---|---|
| Product | Carbon Steel Forged Fittings |
| Material Grades | ASTM A105, ASTM A350 LF2, ASTM A694 F42 / F52 / F60 / F65 / F70 |
| Pressure Classes | Class 3000, 6000, 9000 |
| End Connections | Socket Weld, Threaded |
| Standards | ASME B16.11, MSS SP-79, MSS SP-83, MSS SP-95, MSS SP-97 |
| Material Specification | ASTM A105 / ASME SA105, ASTM A350 / ASME SA350, ASTM A694 / ASME SA694 |
| Product Form | Forged & Machined |
| Types Available | Elbows, Tees, Crosses, Couplings, Unions, Caps, Plugs, Bushings, Reducers, Swage Nipples |
| Application | Oil & Gas, Petrochemical, Power Generation & General Industrial Piping Systems |
As an experienced Carbon Steel Forged Fitting Supplier in India, Metal-Link supplies fittings for changing flow direction, creating branch connections, joining pipes, reducing pipe sizes, and closing piping ends. Our product range includes:
Socket weld fittings are commonly used in small-diameter piping systems where a strong, permanent connection is required. The pipe is inserted into the socket of the fitting and welded externally around the joint.
Socket weld Carbon Steel Forged Fittings are commonly used in steam lines, hydraulic systems, refinery piping, and industrial process applications.
Threaded forged fittings have internally machined threads that connect with threaded pipes or components. They are useful where welding is impractical or where periodic dismantling may be required.
Threaded Carbon Steel Forged Fittings should be selected carefully for systems involving vibration, cyclic pressure, corrosive fluids, or leakage-sensitive services.
| Grade | Standard Reference | Typical Application |
|---|---|---|
| A105 | ASTM A105 / ASME SA105 | General industrial & process pressure piping |
| A350 LF2 | ASTM A350 / ASME SA350 | Low-temperature pressure piping & process systems |
| A694 F42 | ASTM A694 / ASME SA694 | High-pressure pipeline & transmission systems |
| A694 F52 | ASTM A694 / ASME SA694 | Demanding pipeline & oil and gas transmission |
| A694 F60 / F65 / F70 | ASTM A694 / ASME SA694 | Critical high-pressure pipeline infrastructure |
ASTM A105 is one of the most commonly used carbon steel specifications for forged piping components. It is intended for forged carbon steel piping components used in ambient and higher-temperature service within the limits specified by the applicable design code.
ASTM A105 Carbon Steel Forged Fittings are widely used in refineries, oil and gas facilities, power plants, process piping, and general industrial installations.
ASTM A350 LF2 is a low-temperature carbon steel forging material designed for pressure-containing applications requiring notch toughness at lower operating temperatures.
LF2 forged fittings are commonly selected for low-temperature process piping, oil and gas systems, and applications where standard carbon steel may not provide the required impact performance.
ASTM A694 F42 is a high-strength carbon and alloy steel forging grade used for high-pressure transmission service.
F42 Carbon Steel Forged Fittings are commonly used in oil, gas, and pipeline systems where higher strength and pressure capability are required.
ASTM A694 F52 provides increased strength for high-pressure transmission equipment and piping components.
F52 forged fittings are selected where the piping design requires stronger materials than conventional ASTM A105 components.
Higher-strength ASTM A694 grades such as F60, F65, and F70 are used for demanding high-pressure transmission applications.
The selection of these grades depends on project specifications, design pressure, pipe material, welding requirements, and applicable pipeline standards.
Carbon steel forged fittings are commonly supplied in the following pressure classes. The required class depends on the fitting design, pipe schedule, material grade, design pressure, operating temperature, and applicable piping code.
Pressure capability should always be evaluated using the relevant design standard and temperature-pressure limitations rather than selecting a fitting based solely on its class designation.
As a professional Carbon Steel Forged Fitting Stockist in India, Metal-Link supplies fittings in accordance with recognized international standards and customer specifications.
| Standard | Scope |
|---|---|
| ASME B16.11 | Forged fittings – socket-weld and threaded end connections |
| ASTM A105 / ASME SA105 | Carbon steel forged piping components for general service |
| ASTM A350 / ASME SA350 | Low-temperature carbon steel forged piping components |
| ASTM A694 / ASME SA694 | High-strength carbon and alloy steel forgings for pipeline flanges and fittings |
| MSS SP-79 | Socket-welding reducer inserts |
| MSS SP-83 | Class 3000 and 6000 pipe unions |
| MSS SP-95 | Swaged nipples and bull plugs |
| MSS SP-97 | Integrally reinforced branch outlet fittings |
| BS / DIN / EN | Alternative dimensional and material standards as required |
The performance of a Carbon Steel Forged Fitting is influenced by carbon content and other controlled alloying elements.
| Element | Primary Contribution |
|---|---|
| Carbon | Increases strength and hardness |
| Manganese | Improves strength and hardenability |
| Silicon | Acts as a deoxidizer and contributes to strength |
| Phosphorus | Controlled to maintain toughness |
| Sulfur | Controlled to support mechanical integrity |
| Iron | Primary base metal |
The exact chemical composition varies according to ASTM A105, A350 LF2, ASTM A694, and other applicable material specifications.
Carbon steel forged fittings are produced through controlled mechanical deformation and precision machining. A typical manufacturing process includes:
The forging process helps produce fittings with reliable mechanical properties for pressure piping applications.
Carbon steel forged fittings are selected primarily for their combination of strength, toughness, and cost-effective performance. Important properties include:
ASTM A105 is widely used for general pressure piping, while LF2 is selected when low-temperature toughness is required. ASTM A694 grades are typically used for higher-strength and high-pressure transmission applications.
Carbon steel forged fittings can generally be welded using qualified procedures appropriate for the material grade and service conditions. Important considerations include:
For low-temperature and high-strength grades, welding procedures should consider the specific toughness and mechanical property requirements of the material.
Carbon steel provides good mechanical performance but does not offer the inherent corrosion resistance of stainless steel or nickel alloys. For corrosive or outdoor environments, appropriate corrosion protection may be required. Common protection methods include:
The choice of protection depends on the process fluid, external environment, operating temperature, and expected service life.
Carbon steel forged fittings are widely used across industrial sectors because of their strength, availability, and economical performance.
As a dependable Carbon Steel Forged Fitting Supplier in India, Metal-Link Steel & Alloys can supply fittings with inspection and testing according to applicable standards and project requirements. Available testing may include:
With an established presence since 1985 and ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018 certifications, Metal-Link supports consistent product quality. Documentation can include Material Test Certificates, inspection reports, PMI reports, NDT reports, and third-party inspection certificates.
View Certificate →Metal-Link Steel & Alloys supplies Carbon Steel Forged Fittings to EPC contractors, engineering companies, process plants, refineries, fabricators, distributors and industrial buyers across major Indian markets. As a Carbon Steel Forged Fitting Supplier in India, Metal-Link supports standard and project-specific requirements based on grade, size, pressure class and quantity.
Looking for a Carbon Steel Forged Fitting Stockist in India for your oil and gas, refinery, power generation, pipeline, or general industrial piping requirements? Contact Metal-Link Steel & Alloys with your required fitting type, material grade, size, pressure class, end connection, thread specification where applicable, quantity, testing requirements, inspection requirements and documentation requirements for availability and project-specific pricing.
