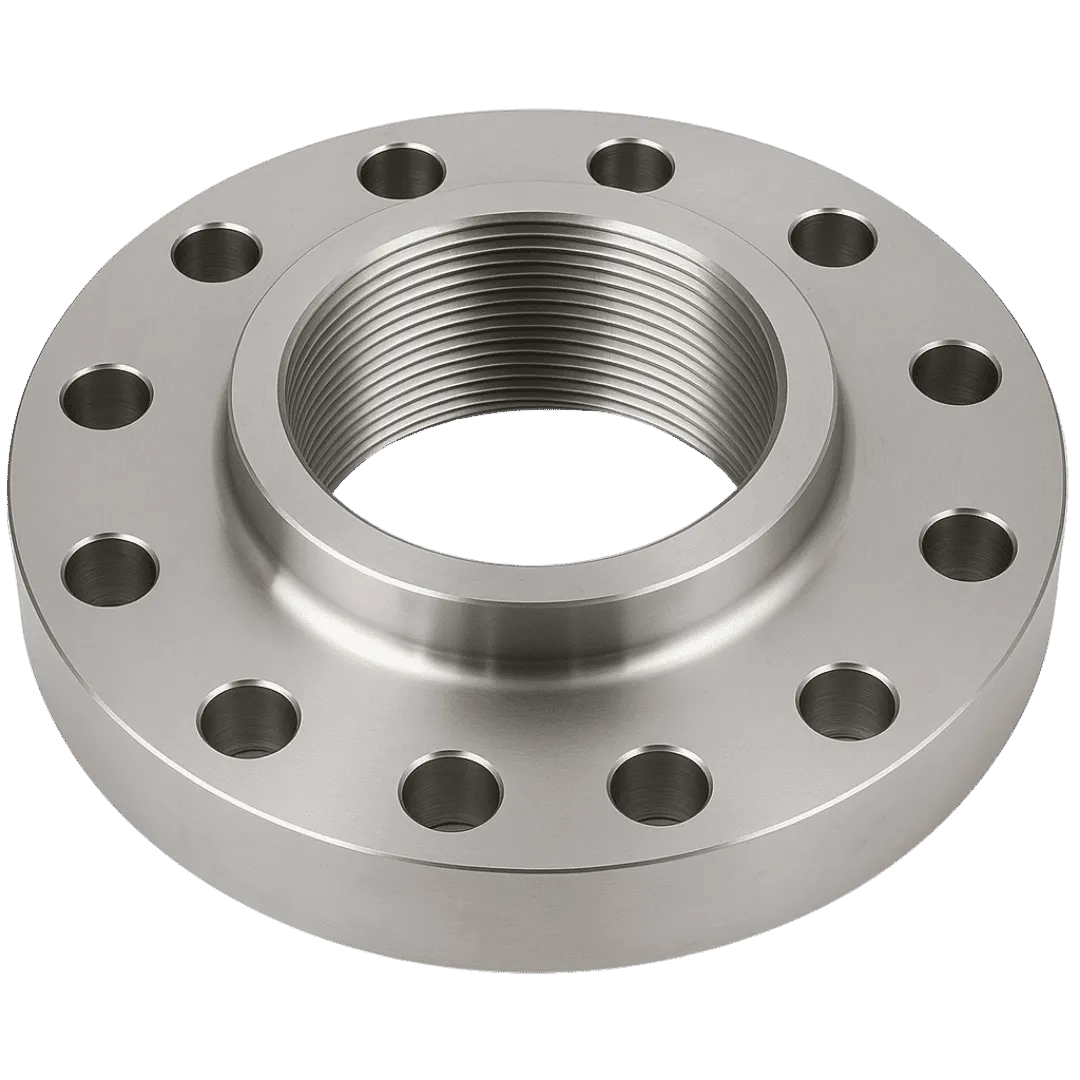

Threaded Flanges are designed with internal threads that allow the flange to be directly screwed onto externally threaded pipes without the need for welding. Their easy installation and maintenance make them suitable for piping systems where welding is difficult or undesirable. They are commonly used in low to moderate-pressure applications across chemical, water treatment, oil & gas, and general industrial piping systems.
| Dimensions: | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
|---|---|
| Size: | 1/2″ (15 NB) to 48″ (1200NB) |
| Class: | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| BS: | BS4504, BS4504, BS1560, BS10, PN6, PN10, PN16, PN25, PN40, etc |
| Table: | D / E / F / H / J / K |
| Api Standards: | PSI-2000/3000/5000/10000/etc |
| JIS Standards: | 2220-2004 5k/10k/16k, etc |
| Flange Face Type: | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
