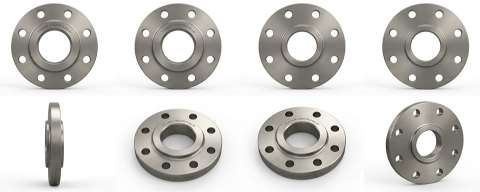

Titanium flanges are high-performance piping components manufactured for applications where corrosion resistance, low weight, mechanical strength, and long service life are essential. As a reliable Titanium Flange Stockist in India and Titanium Flange Supplier in India, we supply titanium flanges in different grades, sizes, pressure ratings, and configurations for chemical processing, marine, offshore, aerospace, power generation, and industrial piping systems.
A Titanium Flange is particularly suitable for environments where conventional carbon steel or stainless steel may experience corrosion, especially in chloride-containing media, seawater, and selected oxidizing chemical environments. Titanium develops a stable, protective oxide film that provides its characteristic corrosion resistance under suitable service conditions.
Get Factory Rates →Titanium Grade 2 is commercially pure titanium and is one of the most widely used grades for corrosion-resistant industrial applications. It offers an excellent balance of corrosion resistance, ductility, weldability, and moderate mechanical strength.
Key characteristics include:
Titanium Grade 2 flanges are commonly used in chemical processing, desalination plants, marine systems, heat exchangers, and industrial process equipment.
Titanium Grade 5, also known as Ti-6Al-4V, is an alpha-beta titanium alloy containing aluminium and vanadium. It provides significantly higher strength than commercially pure titanium grades.
Key characteristics include:
Titanium Grade 5 flanges are used where mechanical strength is a primary requirement, including aerospace systems, offshore equipment, high-performance engineering, and specialized industrial applications.
Titanium Grade 7 is commercially pure titanium with the addition of palladium. The palladium improves corrosion resistance, particularly in reducing acid and crevice corrosion conditions where commercially pure titanium may have limitations.
Key characteristics include:
Titanium Grade 7 flanges are commonly used in chemical plants, acid processing equipment, offshore systems, and critical corrosion-resistant piping applications.
Titanium Grade 12 contains small additions of molybdenum and nickel, improving its strength and corrosion resistance in selected reducing environments.
It provides a useful combination of:
Titanium Grade 12 flanges are suitable for chemical processing, heat exchangers, offshore systems, and industrial equipment exposed to demanding process conditions.
As a professional Titanium Flange Supplier in India, we supply different flange designs based on piping layout, pressure requirements, and installation conditions.
Titanium weld neck flanges feature a tapered hub that provides a smooth transition between the flange and pipe. They are commonly used for high-pressure, elevated-temperature, and cyclic service.
Titanium slip-on flanges fit over the pipe and are welded in position. They are suitable for applications where ease of installation and alignment is important.
Titanium blind flanges are used to close piping systems, pressure vessel openings, and process connections. They are commonly installed where pipeline isolation or future maintenance access is required.
As a trusted Titanium Flange Stockist in India, we can supply titanium flanges according to international dimensional and project specifications.
Common standards include:
Titanium flange material may be manufactured according to applicable ASTM and ASME specifications, depending on the selected grade and product form.
Common pressure classes include:
The final pressure-temperature rating should always be verified according to the applicable flange standard and material specification.
Titanium flange properties depend on the selected alloy grade and its chemical composition.
| Grade | Principal Characteristics |
|---|---|
| Grade 2 | Commercially pure titanium with excellent corrosion resistance and weldability |
| Grade 5 | Titanium alloy containing approximately 6% aluminium and 4% vanadium for high strength |
| Grade 7 | Commercially pure titanium with palladium for enhanced corrosion resistance |
| Grade 12 | Titanium with molybdenum and nickel additions for improved strength and corrosion performance |
The exact chemical composition and permissible element limits should be verified against the applicable material specification and Material Test Certificate.
Titanium provides an excellent strength-to-weight ratio, making it valuable where reduced component weight and mechanical performance are important.
Depending on the grade, key properties include:
Grade 2 is generally selected for corrosion resistance and fabrication, while Grade 5 is preferred for applications requiring significantly higher mechanical strength.
Titanium flanges are widely valued for their corrosion resistance because titanium naturally forms a stable oxide layer on its surface.
Depending on the grade and process conditions, titanium may offer excellent resistance to:
However, titanium is not universally resistant to every chemical environment. Certain reducing acids, fluoride-containing media, and specific temperature and concentration conditions may require special grade selection or an alternative material.
Titanium flange manufacturing requires controlled handling because titanium can react with contaminants at elevated temperatures and requires suitable machining and welding practices.
The manufacturing process generally includes:
Proper process control is important to preserve the material's mechanical and corrosion-resistant properties.
Titanium has good weldability when proper procedures are followed, but contamination control is essential.
Important considerations include:
Poor shielding during welding can affect ductility and corrosion performance. For this reason, titanium fabrication should be carried out using appropriate procedures and clean working practices.
Titanium flanges are used in industries where corrosion resistance, weight reduction, and service reliability are important.
Major applications include:
Titanium is particularly valuable in long-term service environments where reduced corrosion-related maintenance can offset the higher initial material cost.
A Titanium Flange is generally selected when its superior corrosion resistance or low weight provides long-term operational advantages.
| Property | Titanium Flange | Stainless Steel Flange |
|---|---|---|
| Weight | Significantly lighter | Heavier |
| Seawater Resistance | Excellent in suitable conditions | Depends on grade |
| Chloride Resistance | Excellent in many environments | Risk of localized corrosion in some grades |
| Strength-to-Weight Ratio | Excellent | Moderate to high |
| Initial Cost | Higher | Generally lower |
| Typical Applications | Marine, chemical, aerospace, desalination | General industrial and corrosive service |
Titanium flanges can be supplied with inspection and testing according to project requirements.
Available testing may include:
Documentation may include Material Test Certificates, inspection reports, PMI reports, and other project-specific quality documents.
View Certificate →As an experienced Titanium Flange Stockist in India, we supply titanium flanges for demanding industrial and engineering applications.
Our supply capabilities include:
As a reliable Titanium Flange Stockist in India and Titanium Flange Supplier in India, we supply titanium flanges for chemical processing, marine engineering, offshore facilities, desalination, aerospace, and other demanding industrial applications.
Our range includes Titanium Grade 2, Grade 5, Grade 7, and Grade 12 flanges in different types, sizes, pressure ratings, and dimensional standards. Each Titanium Flange can be supplied with the required material certification, testing documentation, and traceability to support project quality requirements.
For an accurate quotation, provide the required titanium grade, flange type, size, pressure class, standard, quantity, testing requirements, and documentation requirements to ensure the correct product is supplied for your application.
